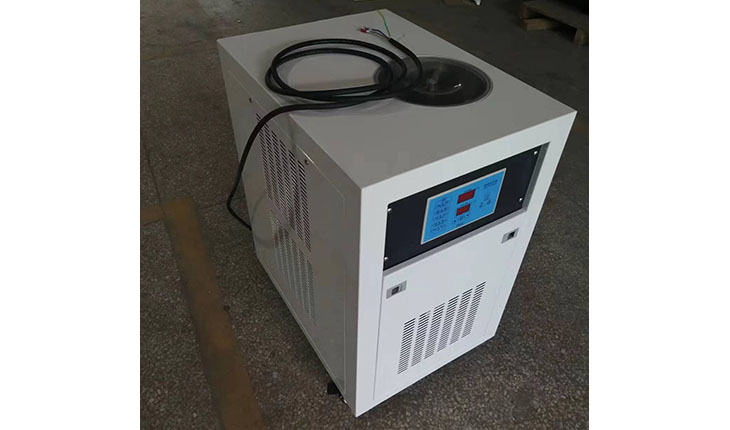

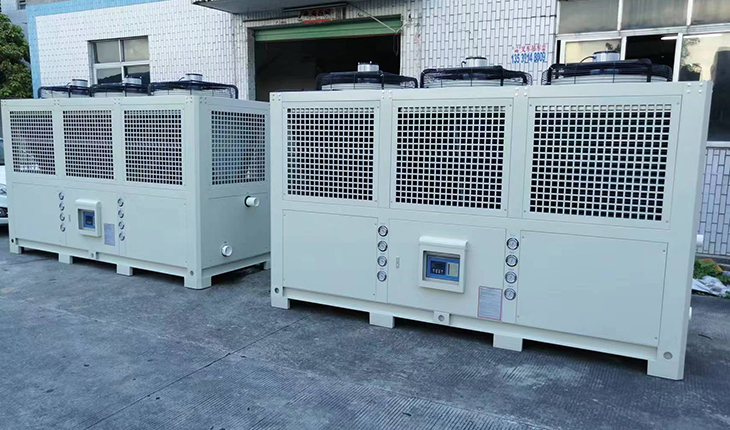

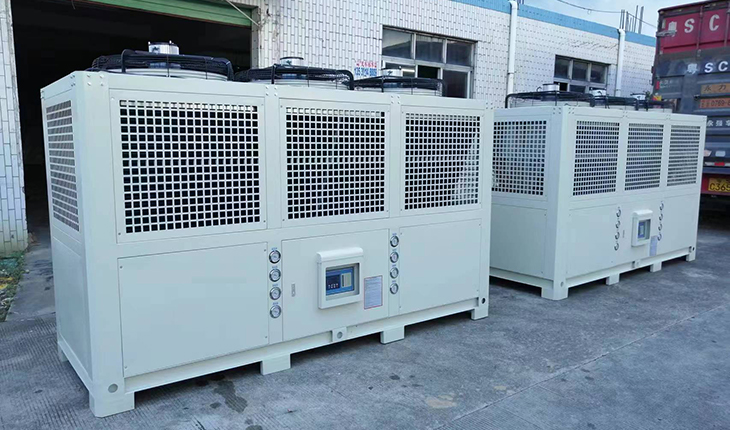

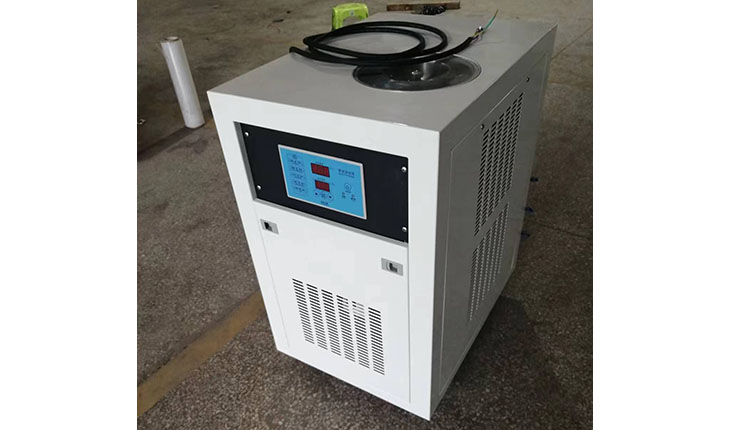

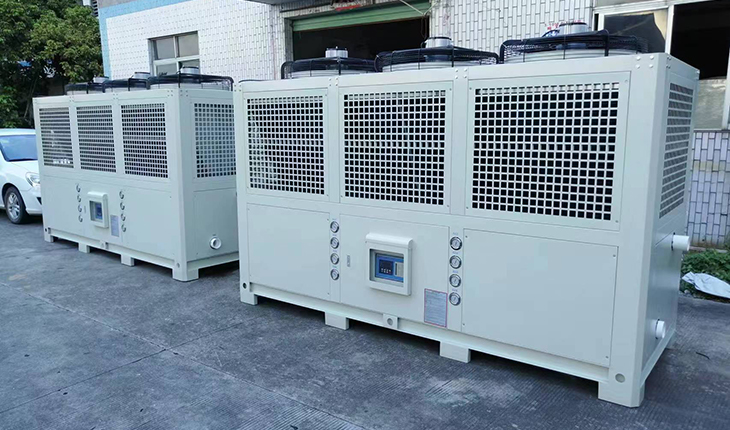

Air-cooled box type industrial chiller

Durable compressor: The compressor adopts imported famous brand fully enclosed scroll compressors such as DAIKIN, SANYO, and Copeland, which have an efficiency 20-30% higher than reciprocating compressors, stable and reliable operation, high efficiency and low faults, low vibration and noise, easy maintenance, and long service life. According to customer needs and cold tonnage, single or multiple compressors can be used in combination. The compressors can automatically alternate operation according to load changes, balancing the operating hours of each compressor, achieving the effect of saving energy consumption and extending the service life of the chiller unit. There are various types of fully enclosed scroll compressors suitable for refrigerant working fluids such as R22, R407C, R134a, etc.

Energy saving and economy: The digital electronic thermostat can accurately control the cold water temperature between 3 ° C and 50 ° C, thereby controlling the normal operation of the unit and ensuring energy conservation. All unit assembly, internal wiring, refrigerant filling, and unit debugging are completed in the factory.

Protection device: The protection system includes compressor delay start protector, overload protector, high and low voltage protector, temperature control switch, antifreeze switch, fuse plug, electronic time protection safety valve, compressor overheat protector, compressor frequent start protector, and abnormal indicator light to ensure the normal operation of the unit.

Equipment of the unit: stainless steel circulating water tank, imported water pump. Units with a capacity of 10P or above can choose dual circuit refrigeration. Even if the circuit fails and malfunctions during operation, the other circuit can still operate normally, ensuring the normal use of production procedures. Condensing fan: The air-cooled condenser adopts an imported fan and a high airflow axial flow design. The imported heat exchange fan has a significant heat exchange effect. The ultra-low noise fan, combined with a high-efficiency motor, has a large air volume, low vibration, and is equipped with external protective barriers to achieve good heat dissipation. The fan is made of high-strength hard aluminum alloy, and the blades are formed by stamping. After strict dynamic and static balance testing, the quality is better than that of the same row.

Product Description
